ME 2050 Statics: Analyzing Beams and Their Behavior

Beams   Chapter 1: Introduction to Beams    Beams are structural members used to support and transfer loads from one point to another. They can be classified into various types based on their geometry, load, and support conditions. In ME 2050 Statics, we study the behavior of beams under different loading conditions and design them for strength and stability.   1.1 Types of Beams     a) Simple Beam: A simple beam is a beam supported at its ends and subjected to transverse loads perpendicular to its longitudinal axis.    b) Cantilever Beam: A cantilever beam is a beam supported at one end and subjected to transverse loads perpendicular to its longitudinal axis.    c) Continuous Beam: A continuous beam is a beam supported at more than two points and subjected to transverse loads perpendicular to its longitudinal axis.    d) Truss: A truss is a structure made up of several connected members that form triangular structures and support loads.    1.2 Load Types     a) Concentrated Load: A concentrated load is a single-point load acting at a specific point on the beam.    b) Distributed Load: A distributed load is a force that is spread over a portion of the beam's length.    c) Uniformly Distributed Load: A uniformly distributed load is a load that is evenly distributed over the entire length of the beam.

1.3 Support Conditions     a) Pin Support: A pin support is a support that allows the beam to rotate around its axis.    b) Roller Support: A roller support is a support that allows the beam to move freely in the direction perpendicular to its axis.    c) Fixed Support: A fixed support is a support that prevents both rotation and translation of the beam.   Chapter 2: Shear Force and Bending Moment    Shear force and bending moment are important concepts in beam analysis. They help us understand the internal forces acting on a beam and design it for strength and stability.   2.1 Shear Force     Shear force is the force acting along the cross-section of a beam that tends to shear it. It's represented by the symbol V and is measured in newtons (N) or pounds (lb). Shear force can be determined by taking the derivative of the bending moment with respect to the position along the beam.   2.2 Bending Moment     Bending moment is the moment acting on a beam that causes it to bend. It's represented by the symbol M and is measured in newton-meters (Nm) or pound-feet (lb-ft). Bending moment is directly proportional to the distance of the load from the support. It can be determined by calculating the area under the shear force curve.   2.3 Shear and Bending Moment Diagrams     Shear and bending moment diagrams are graphical representations of the internal forces acting on a beam. They help us visualize the distribution of internal forces along the length of the beam and identify critical sections where the beam is most likely to fail.

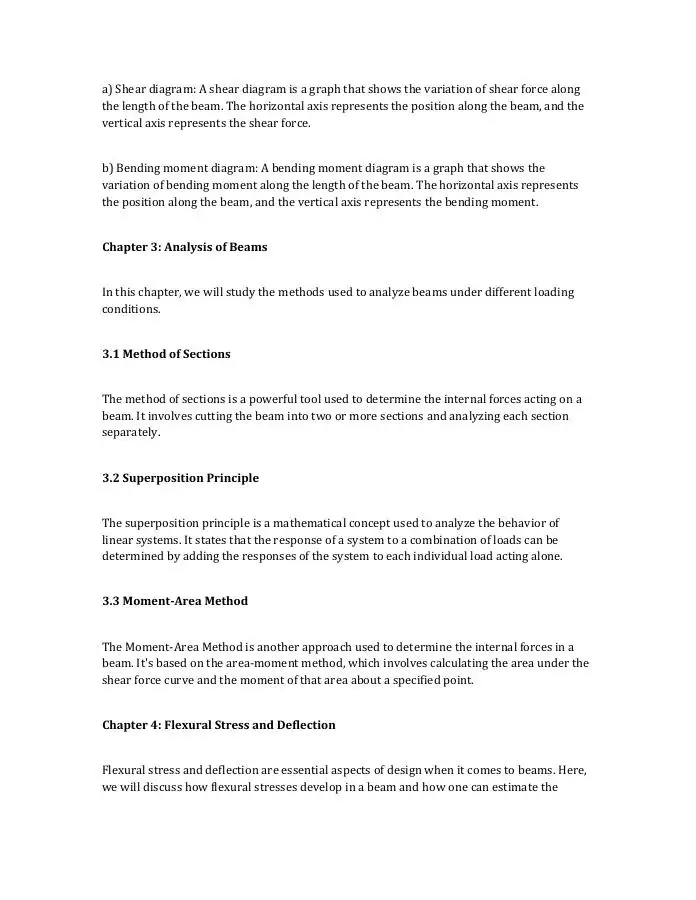

a) Shear diagram: A shear diagram is a graph that shows the variation of shear force along the length of the beam. The horizontal axis represents the position along the beam, and the vertical axis represents the shear force.    b) Bending moment diagram: A bending moment diagram is a graph that shows the variation of bending moment along the length of the beam. The horizontal axis represents the position along the beam, and the vertical axis represents the bending moment.   Chapter 3: Analysis of Beams    In this chapter, we will study the methods used to analyze beams under different loading conditions.   3.1 Method of Sections     The method of sections is a powerful tool used to determine the internal forces acting on a beam. It involves cutting the beam into two or more sections and analyzing each section separately.   3.2 Superposition Principle     The superposition principle is a mathematical concept used to analyze the behavior of linear systems. It states that the response of a system to a combination of loads can be determined by adding the responses of the system to each individual load acting alone.   3.3 Moment-Area Method     The Moment-Area Method is another approach used to determine the internal forces in a beam. It's based on the area-moment method, which involves calculating the area under the shear force curve and the moment of that area about a specified point.   Chapter 4: Flexural Stress and Deflection    Flexural stress and deflection are essential aspects of design when it comes to beams. Here, we will discuss how flexural stresses develop in a beam and how one can estimate the

amount of deflection a beam may experience.   4.1 Flexural Stress     Flexural stress is the stress caused by the bending of a beam. It's represented by the symbol  σb and is measured in Pascals (Pa) or pounds per square inch (psi). The maximum flexural  stress usually occurs at the point where the bending moment is maximum.   4.2 Elastic Curve     Elastic curve is a curve that represents the deflection of a beam subjected to bending loads. It can be used to estimate the maximum deflection of a beam and the location of the maximum deflection.   4.3 Moment-Curvature Relationship     The moment-curvature relationship is a relationship between the bending moment and the curvature of a beam. It's used to determine the maximum stress and deflection of a beam under different loading conditions.   Chapter 5: Shear Stress in Beams    Shear stress occurs when the internal forces of a beam act parallel to the cross-section of the beam. We will discuss shear stress and the effects of shear force on beam behavior and design in this chapter.   5.1 Shear Stress     Shear stress is the stress caused by shear forces acting on a beam. It's represented by the  symbol Ï„ and is measured  in Pascals (Pa) or pounds per square inch (psi). The maximum  shear stress usually occurs at the point where the shear force is maximum.   5.2 Shear Stress Distribution

The distribution of shear stress in a beam varies along the cross-section of the beam. The maximum shear stress usually occurs at the neutral axis, where the shear forces are highest.   5.3 Shear Design Criteria     When designing a beam with regards to shear forces, we need to ensure that the shear stress in the beam is within acceptable limits to avoid failure. The design criteria for shear in a beam are often specified by codes of practice or building regulations.   Chapter 6: Deflection of Beams    The deflection of beams under different loading conditions is an essential aspect of beam design. We will study the methods used to estimate the deflection of beams and the significance of deflection in beam design.   6.1 General Deflection Formula     The general deflection formula is used to calculate the deflection of a beam under different loading conditions. It's based on the moment-curvature relationship and the beam properties.   6.2 Singularity Functions     Singularity functions are mathematical functions used to represent the loads acting on a beam. They can be used to calculate the deformation of a beam under different loading conditions.   6.3 Area-Moment Method     The area-moment method is a graphical method used to determine the deflection of a beam under different loading conditions. It involves calculating the moment of the area under the loading curve with respect to a reference axis.   Chapter 7: Design of Beams

The design of beams is an essential aspect of mechanical engineering. In this chapter, we will study the methods used to design beams for strength and stability.   7.1 Load Factors     The load factor is a factor used to account for the uncertainty of the actual loads compared to the design loads. It's used in the design of beams to ensure that they can support the maximum expected loads.   7.2 Safety Factor     The safety factor is a factor used to ensure that the beam can carry the design loads without failing. It's used to account for factors such as material defects, creep, and fatigue.   7.3 Design Criteria     The design criteria for beams depend on the application and the materials used. The criteria usually specify the allowable stress and deflection of the beam, as well as the safety factor and load factor.   7.4 Design Examples     Design examples are a useful tool to illustrate the methods used to design and analyze beams. They help you understand the principles of beam design in practice.   Conclusion    Beams are essential elements used in mechanical engineering design. They support and  transfer loads from one point to another and are subjected to various forces that can cause  stress, deformation, and failure. In ME 2050 Statics, we study the behavior of beams under  different loading conditions and design them for strength and stability. By understanding  the concepts of shear force, bending moment, flexural stress, deflection, and design criteria,  we can analyze, design, and optimize beams for different applications.
